Stainless Stell Hygienic Weight Indicator

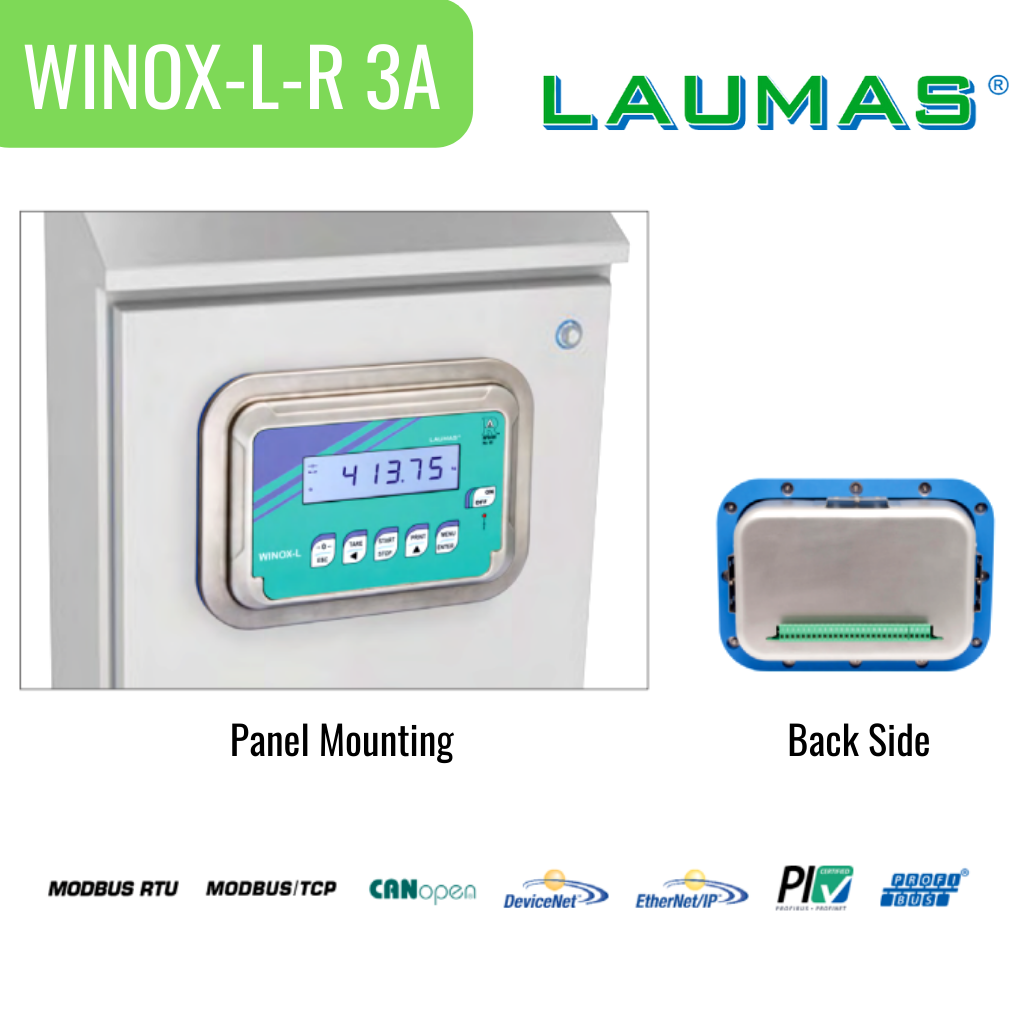

LAUMAS WINOXL/R 3A Stainless Steel Hygienic Weight Indicator

MAIN FUNCTION
  • Connections to:
    – PLC via analog output (on request);
    – PC/PLC via RS485/RS232 (up to 99 instruments with line repeaters, up to 32 without line repeaters);
    – remote display and printer via RS485/RS232;
    – up to 8 load cells in parallel by junction box;
    – intelligent junction box or other multichannel instruments: allow the use of advanced functions as digital equalization, load distribution analysis and automatic diagnostics.
    – IoT gateway for cloud connection via RS485.
  • TCP/IP WEB APP: integrated software in combination with the Ethernet TCP/IP option for remote supervision, management and control of the instrument.
  • Digital filter to reduce the effects of weight oscillation.
  • Theoretical calibration (via keyboard) and real calibration (with sample weights and the possibility of weight linearization up to 8 points).
  • Tare weight zero setting.
  • Automatic zero setting at power-on.
  • Gross weight zero tracking.
  • Semi-automatic tare (net/gross weight) and preset tare.
  • Semi-automatic zero.
  • Displaying of the maximum weight value reached (peak).
  • Direct connection between RS485 and RS232 without converter.
  • Weight value printing with date and time via keyboard or external contact.
  • Program Available : Base Program, Batching Program, Multiple Program
