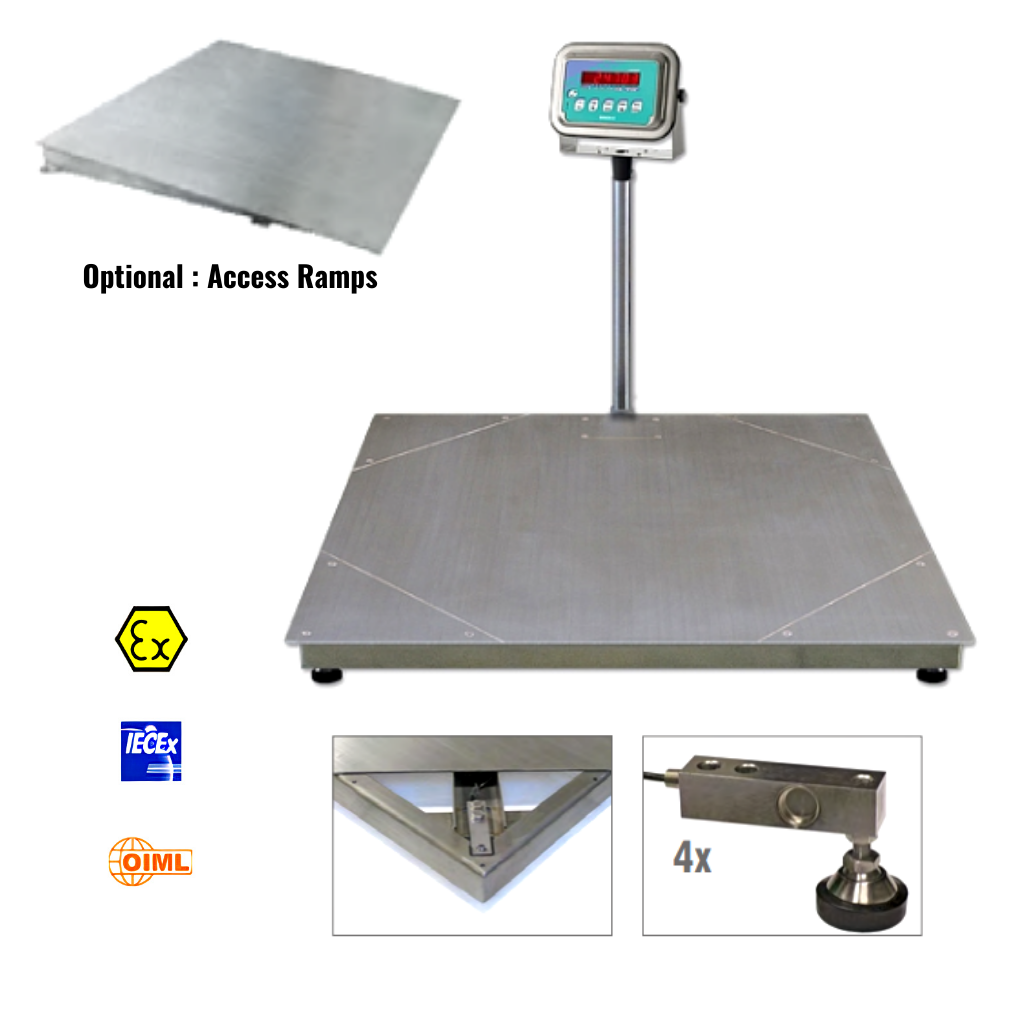

AISI 304 Stainless Steel Platforms with 4 IP68 Load Cell

DESCRIPTION

• Capacity up to 3000 kg
• AISI 304 stainless steel platform
• P-INOXN: 4 load cells FT-P 1000 kg
  P-INOXN-S5: 4 load cells FT-P 500 kg
  17-4 PH stainless steel – IP68 (on request: IP69K)
• IP67 stainless steel junction box with equalization board and 6-wire output cable (length: 5 m)
• Inspectable compartments for load cells and junction box
• AISI 304 stainless steel adjustable feet, self-centering on sphere
• Two M12 holes for lifting eyebolts
• Available optional : Pit Frame, Ramps
