Weighing System for Material Management of Storage Tank/Hopper/Silos
Tank owners who have limited staff or personnel that lack the necessary training to manage their Above-Ground or Underground Storage are considerably have issues with their control and monitoring of the material. Tank weighing system helps to control, monitoring an oversight of above-ground and underground tanks that are used for the storage of fuels, oils, and chemicals. Easy to monitored from PC, Smartphones, Tablets, etc which makes our tank weighing system more efficient for Industrial needs and able to improve the productivity with realtime monitoring and control. The goals of this application are to minimize losses due to lack of control and supervision. Panatronik as a Laumas Authorized Distributor in Indonesia provide monthly visual inspections, annual preventative maintenance, testing and calibration, emergency on-call, non-emergency on-call, and replacement parts of a tank weighing system.
- Panel mounting
- Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
- Backlit graphic LCD display, 60×32 mm, 128×64 pixels
- Six-digit red LED display, 10 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
- Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
- Six-digit red LED display, 14 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc
- Passive fail-safe Zener barriers, ATEX II (1) GD approved
- Explosion proof box, ATEX II 2(1) GD approved, provided with heat-resistant transparent tempered glass window and 5 external buttons which performs the same functions as W200 keyboard
- Load Cell CBL, 17-4PH STAINLESS STEEL CONSTRUCTION, Capacity 250 Kg – 100000 Kg
- AISI 304 stainless steel upper and lower plates
- AISI 304 stainless steel laminas against lateral forces
- Anti-tilt constraint consisting of two threaded rods with self-locking nut
- Max Static Load 15000 Kg
- Double Ended Shear Beam Load Cell DTX, Nickel Plated Alloy Steel Construction, Capacity 9000 Kg – 27000 Kg
- Nickel-plated steel alloy mounting kit for rigid attachment of the load cell.
- It prevents horizontal movement.
- Max Static Load 27000 Kg.

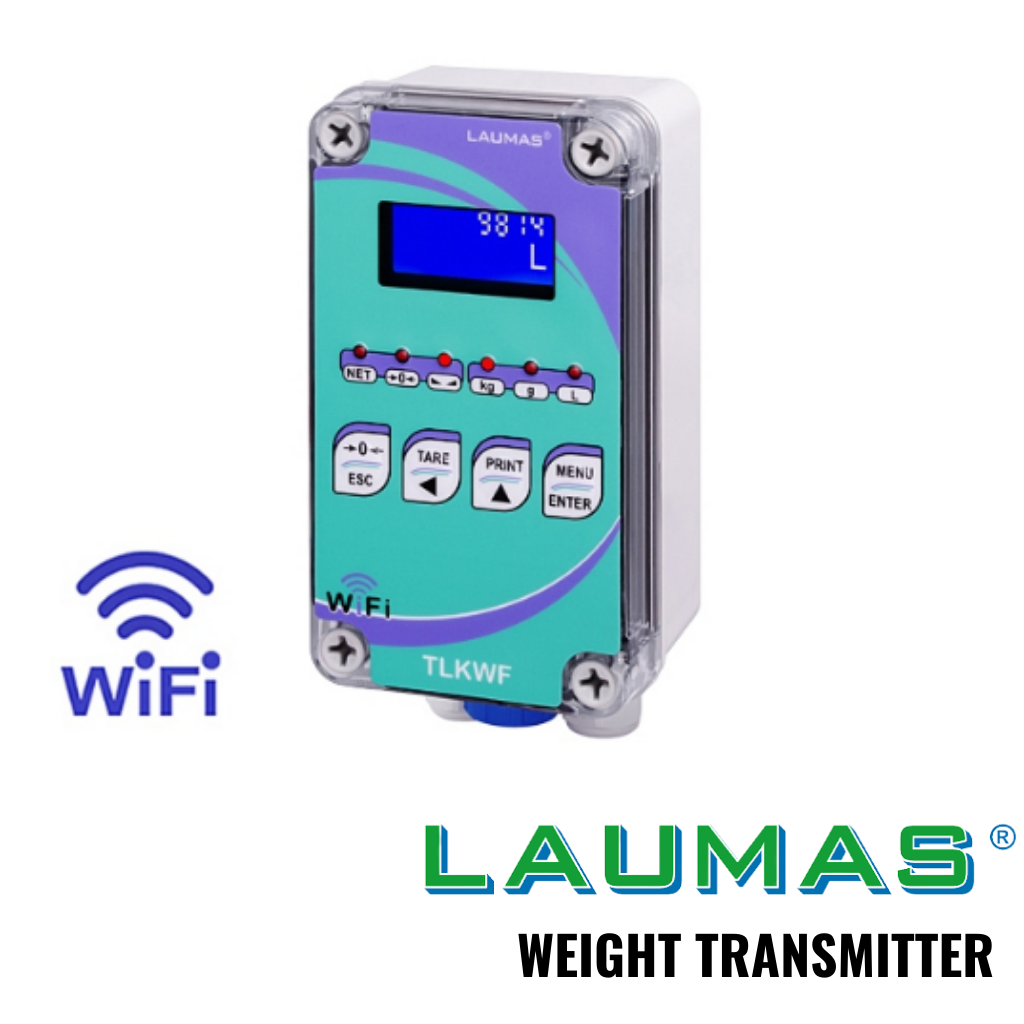

MODWF – Weight Transmitter
Wifi module for wireless connection via integrated web server (for remote management to PC, smartphone, tablet, etc.) or via Modbus RTU/Laumas ASCII protocol
Upon Request:
- Tank / Hopper Manufacturing and Installation
- Pipe System Installation
- Electrical Installation
