Shallow Pit Truck Scale
A shallow pit installation for Truck Scale which suitable for areas that have narrow spaces. No access ramps required. Available a completely automatic integrated system, semi-automatic or even manually with operator. Panatronik provide the ideal custom designing, engineering, and manufacturing of Truck Scale system to increase the performance and productivity with an efficient site planning. Configuration, communication to PLC, data collection and report available via ModBus RTU, ASCII Laumas or continuous one way transmission.
Weighbridge Indicator
Load Cell
Additional Information

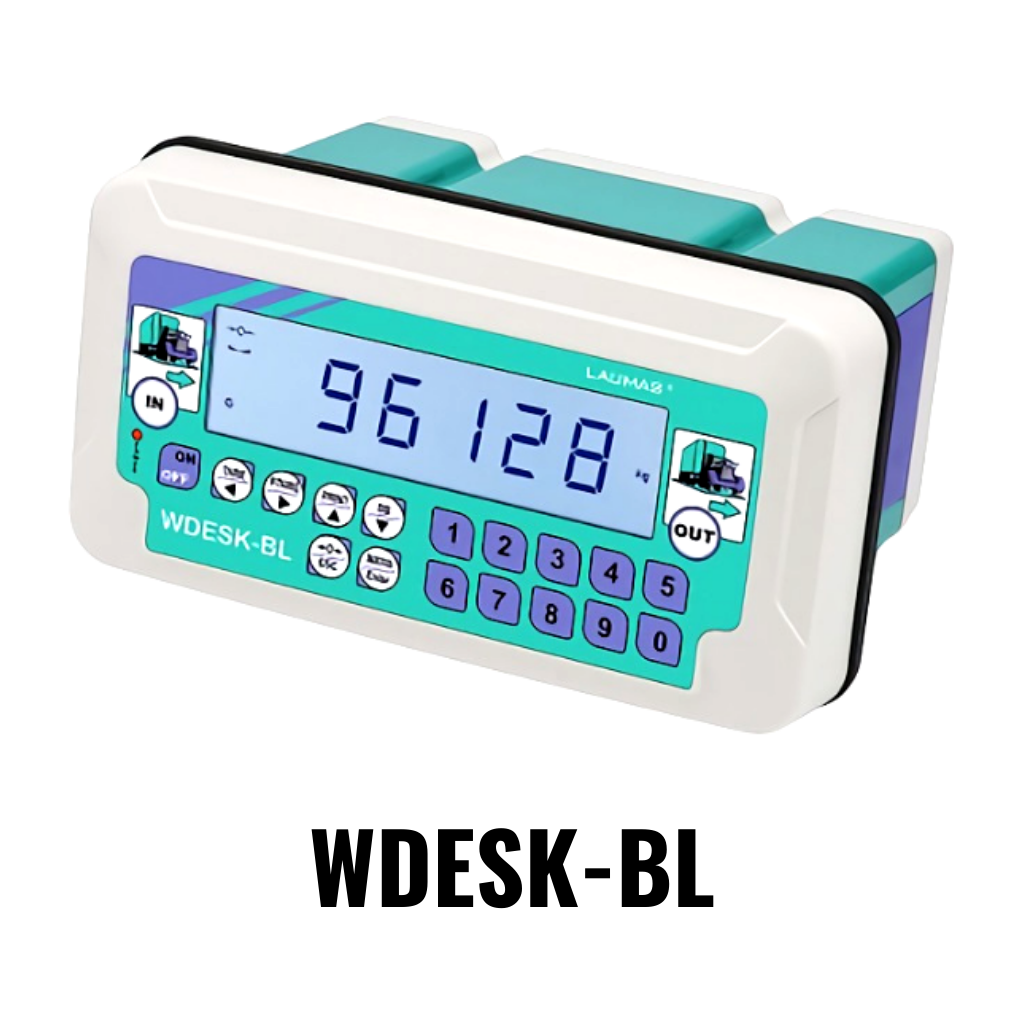

Weighbridge Indicator
Spesification
- BL version: 6-digit semi-alphanumeric backlit LCD display (20 mm height) – 46 signalling symbols
- BR version: 6-digit semi-alphanumeric red LED display (20 mm height) – 16 signaling LED
- 19-key keyboard
- IP67 front panel protection rating
- Double weighing (entry and exit), single weighing (entry or exit), double weighing with trailer, single weighing with trailer, multiple weighing (weighing of multi-compartment trucks)
- Simultaneous management of 254 trucks
- Open input weighings archive (max 254)
- Database with 999 preset tares
- Up to 10000 weighings that can be saved in alibi memory
- Traffic light management via relay outputs
- Totals management (loaded and unloaded products)
- Printing of displayed weight, open weighings, totals, and last weighing done
- Customizable printouts (header) via PC software
- Hysteresis and setpoint value setting
Load Cell
Description
- Capacity from 15000 – 50000 kg
- Special Steel with combined error ≤ ±0.02%
- Protection rating IP68
- Complementary accessories composed by anti-rotation system, protective rubber seal, 2 bases (upper and lower) and 3 self-centering cylindrical plates
Additional Information
Platform Deck:
- Steel Platform
- Concrete Platform
Upon Request:
- PC, Printer
- Fully integrated system for Traffic Light, Barrier, Intercom, RFID sensor, CCTV
- PC Software for Truck Scale Data Management
