It is possible to connect P-WS to a 24 columns serial printer and/or RD (data recorder on memory).
– Mod. P-WS 6 PRODUCTS includes an 8-relay module (80 x 160 x height 60 mm) 115 VAC 2A.
– Mod. P-WS 14 PRODUCTS includes two 8-relay modules (80 x 160 x height 60 mm, 80 x 120 x height 60 mm) 115 VAC 2A.
The P-WS systems are composed by:

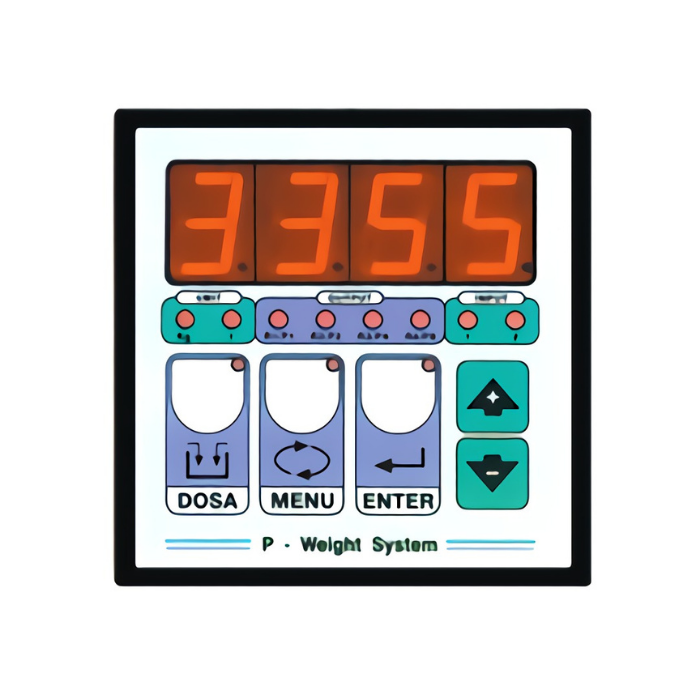

Weight indicator in DIN box (96 x 96 x 65 mm, drilling template 91 x 91 mm) for panel mounting.
IP64 front panel protection.
Five-key keyboard.
Four-digit semialphanumeric display (20mm h), 7 segment LED.
Wall mounting version (IP64): dimensions 98x125x75 mm.
THEORETICAL CALIBRATION is performed via the keyboard.
PASSWORD: It is possible to enable an internal parameter to protect the access to the calibration and constants programming.
Panatronik is a manufacturer of scales and authorized dealer for commercial and industrial applications. We help businesses integrate scales and measuring devices into their business operations, ensuring high levels of reliability and improved productivity. Our mission is simple — to provide businesses with extremely accurate scales at an affordable price!
