Jumbo Bag Scale

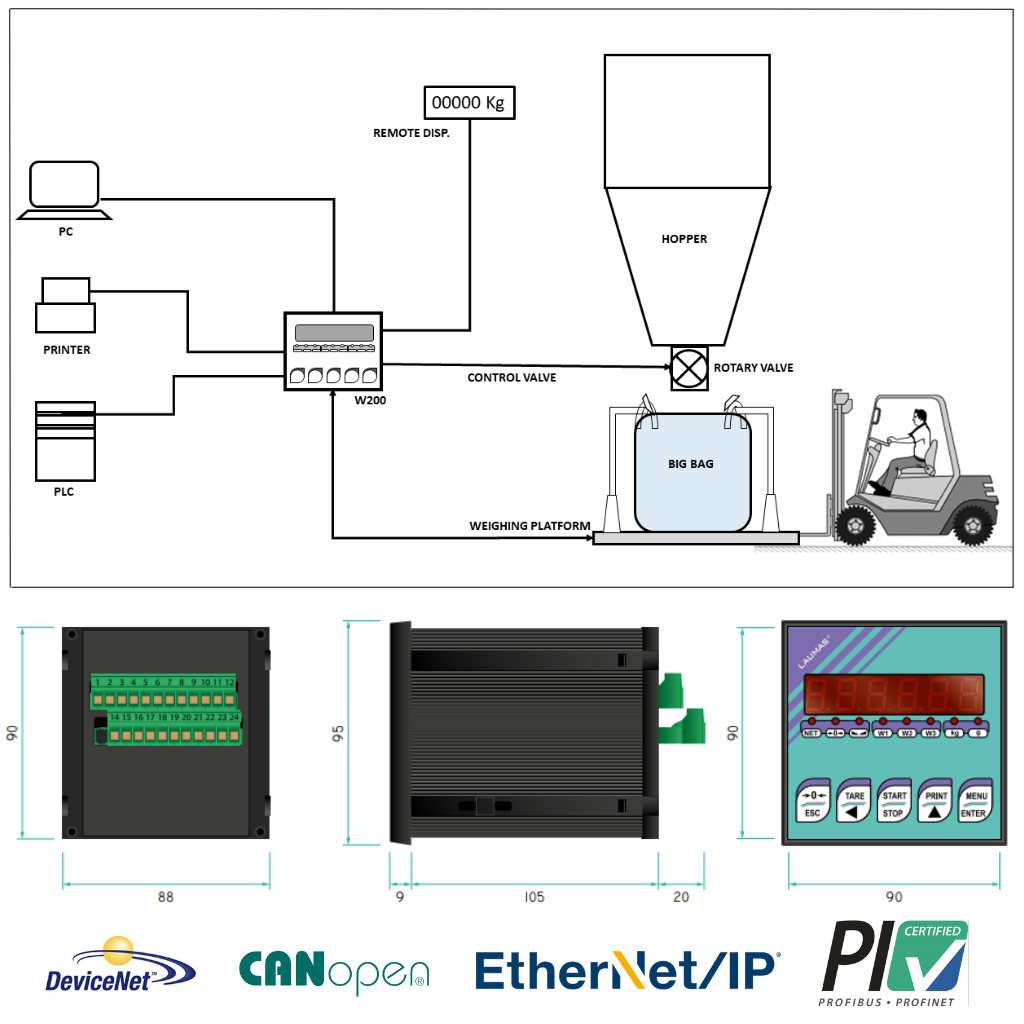

Available for Automatic or Semi-Automatic Single Batch System to improve the efficiency of your material handling process. Panatronik also provide custom designing, engineering, and manufacturing batching to increase your performance in production process, improve consistency, eliminate product waste. This application enabled using Suspended Tank Weighing or On Ground Tank/Hopper with Compression Load Cell & Weighing Module. Configuration, communication to PLC, data collection and report available via Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET IO, Ethernet IP, Ethernet TCP/IP, EtherCAT, DeviceNet, CANopen, POWERLINK, CC-Link, IO Link, Sercos III.
Industrial Application : Food Process & Packaging, Manufacturing Industry, Transport & Logistic Industry.
Indicator / Controller
Weight Indicator in DIN case, dimensions 96 x 96 x 130 mm. IP54 front panel protection. Five-key membrane keyboard. Eight indicator led. Real time clock/calendar. Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas. Six-digit red LED display, 14 mm height. RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol). 3 logic inputs, 5 relay outputs.
Optional
Weight Indicator in DIN case, dimensions 96 x 96 x 130 mm. IP54 front panel protection. Ten-key membrane keyboard. Eight indicator led. Real time clock/calendar. Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas. Backlit graphic LCD display, 60×32 mm, 128×64 pixels. Six-digit red LED display, 10 mm height. RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol). 3 logic inputs, 5 relay outputs. OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI. OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.). Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc. A/D converter 24bit (16000000 points) 4.8 kHz. Display range 999999.
Weighing Module

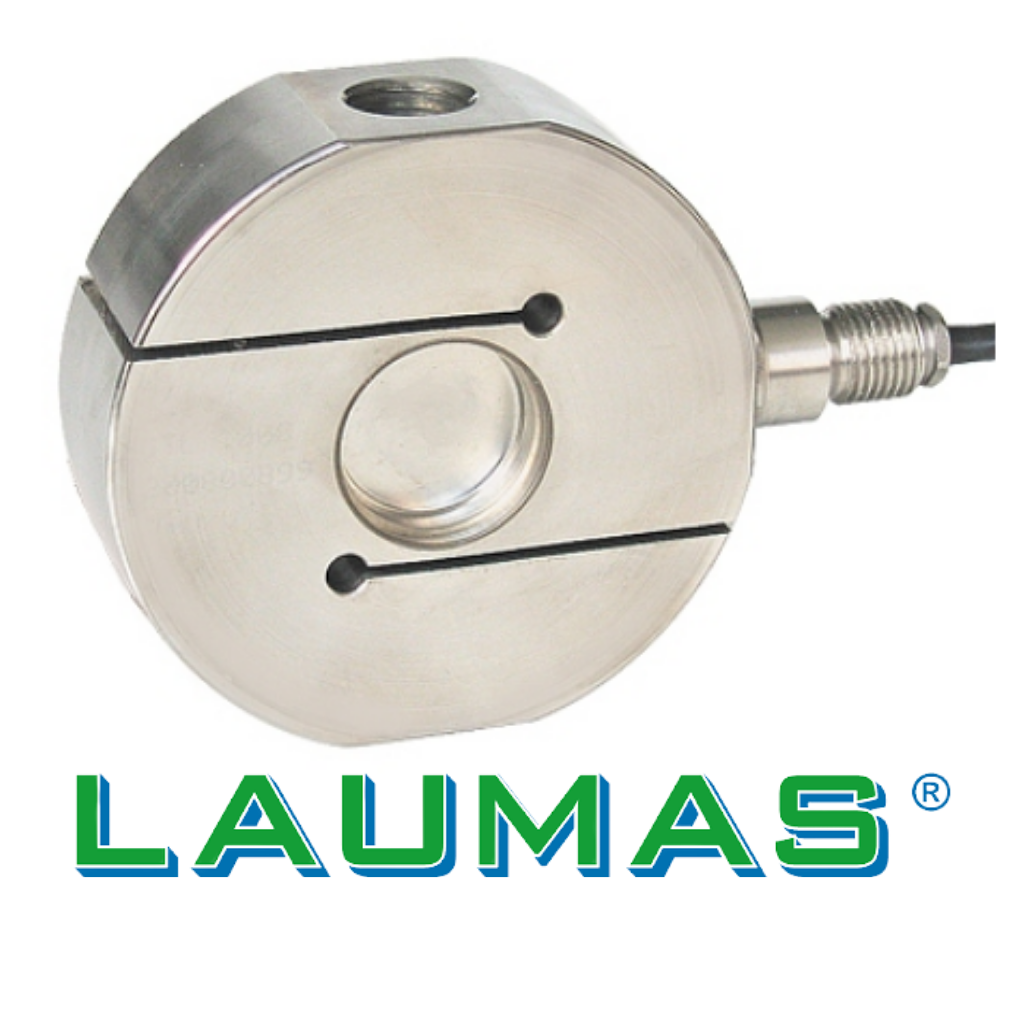

- Tension Load Cell, CTL for Suspended Tank Weighing
- 17-4 PH Stainless Steel Construction
- Combined Error < +/- 0.02 %
- Protection Rating IP 68 (IP 69K)
- Accuracy Class C3 (OIML R60)
- Capacity : 100 Kg – 12500 Kg
- Complementary Accessories : Ball-and-socket joint with nut
Optional
- Load Cell CBL, 17-4PH STAINLESS STEEL CONSTRUCTION, Capacity 250 Kg – 100000 Kg
- AISI 304 stainless steel upper and lower plates
- AISI 304 stainless steel laminas against lateral forces
- Anti-tilt constraint consisting of two threaded rods with self-locking nut
- Max Static Load 15000 Kg
Additional Information
Upon Request:
- Tank / Hopper Manufacturing and Installation
- Pipe System Installation
- Electrical Installation
