Dini Argeo products specialized in weighing systems. Offers solutions in the area of mechatronics, ranging from mobile weighing systems to scales for commercial and industrial use. This includes a wide range of components, electronic solutions, and software, for industrial automation and systems integration.
Dini Argeo boasts over 100 years of experience in the area of weighing, batching and industrial automation. The company offers state of the art technology, which guarantees the highest levels of precision, keeping to international standards.
A. Load Cells
1. High Resolutions

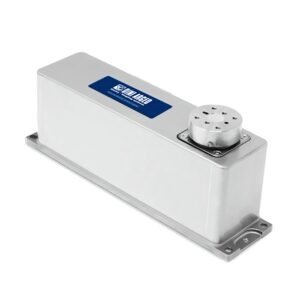

HIGH-PRECISION GLC SERIES DIGITAL LOAD CELL
Very high performance digital load cell, stainless steel case and electromagnetic sensor technology. Fast and repeatable, it allows to create very high performance weighing systems.
Ideal for industrial automation.
IP65 protection rating.
2. Off Center

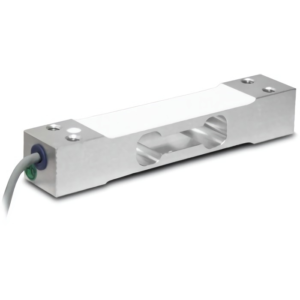

SPO SERIES SINGLE POINT LOAD CELL
Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 300×300 mm.
CAPACITIES (kg): 3, 5, 10, 15, 20, 30, 40.
OIML R60. C3 precision class.
Aluminium alloy. IP67 protection.

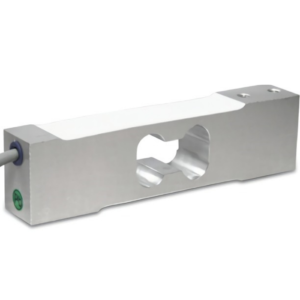

SPG SERIES SINGLE POINT LOAD CELL, C6 CLASS
Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell; maximum platform dimensions of 450×450 mm.
CAPACITIES (kg): 7, 10, 18, 36.
OIML R60. C6 precision class.
Aluminium alloy. IP67 protection.
SPG SERIES SINGLE POINT LOAD CELL, C3 CLASS
Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell; maximum platform dimensions of 600×600 mm.
CAPACITIES (kg): 10, 15, 20, 30, 50, 100, 200.
OIML R60. C3 precision class.
Aluminium alloy. IP67 protection.

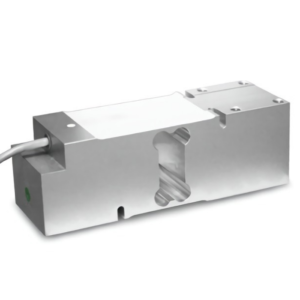

SPM SERIES SINGLE POINT LOAD CELL
Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell; maximum platform dimensions of 600×600 mm.
CAPACITIES (kg): 100, 200, 500.
OIML R60. C3 precision class.
Aluminium alloy. IP67 protection.

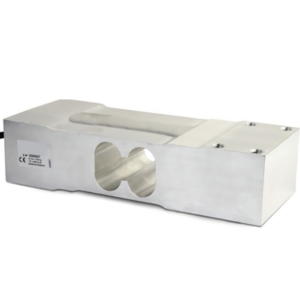

SPBC SERIES SINGLE POINT LOAD CELL
Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 700×700 mm.
CAPACITIES (kg): 100, 200, 300, 500, 630.
OIML R60. C3 precision class.
Aluminium alloy. IP65 protection.
SPN SERIES SINGLE POINT LOAD CELL
Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell; maximum platform dimensions of 800×800 mm.
CAPACITIES (kg): 300, 500, 750.
OIML R60. C3 precision class.
Aluminium alloy. IP67 protection.

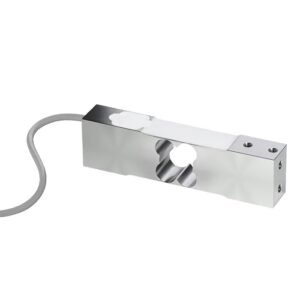

SPSW SERIES SINGLE POINT STAINLESS STEEL LOAD CELL
Stainless steel load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 500×400 mm.
CAPACITIES (kg): 7.5, 15, 30, 50, 100, 200.
OIML R60. C3 precision class.
17-4 PH stainless steel. IP67 protection.
SPSY SERIES SINGLE POINT STAINLESS STEEL LOAD CELL
Stainless steel load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 500×400 mm.
CAPACITIES (kg): 10, 20, 50, 100.
OIML R60. C3 precision class.
17-4 PH stainless steel. IP68/IP69K protection.

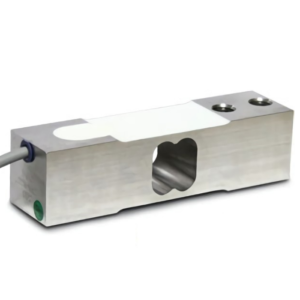

SPSX SERIES SINGLE POINT STAINLESS STEEL LOAD CELL
Stainless steel load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 600×800 mm.
CAPACITIES (kg): 100, 300, 500.
OIML R60. C3 precision class.
17-4 PH stainless steel. IP67 protection.

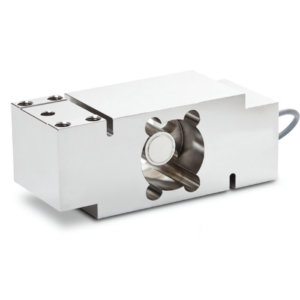

SPSZ SERIES SINGLE POINT STAINLESS STEEL LOAD CELL
Stainless steel load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 800×800 mm.
CAPACITIES (kg): 500, 1000.
OIML R60. C3 precision class.
17-4 PH stainless steel. IP68 protection.
3. Bending Beam
FXC SERIES BENDING BEAM LOAD CELL
Bending beam load cells for approved weighing, automatic systems, dosage.
CAPACITIES (kg): 10, 20, 50, 100, 200, 300, 500.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.

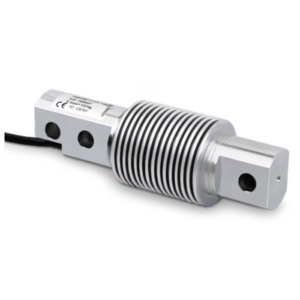

FXC C6 SERIES BENDING BEAM LOAD CELL
Bending beam load cells for approved weighing, automatic systems, dosage.
CAPACITIES (kg): 20, 50, 100, 200.
OIML R60. C6 precision class.
Stainless steel. IP68 protection.
FXD SERIES BENDING BEAM LOAD CELL
Bending beam load cells for approved weighing (capacities from 100kg to 500kg), automatic systems, dosage.
CAPACITIES (kg): 10, 20 , 50, 100, 200, 300, 500.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.
4. Shear Beam

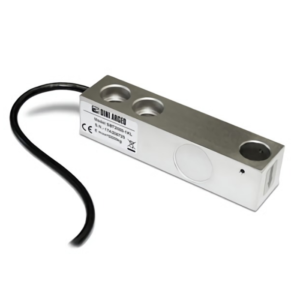

SBT SERIES SHEAR BEAM LOAD CELL
Dini Argeo nickel-plated approved load cells. The measures are compatible with the main shear beam load cells present on the market. Suitable for creating CE-M approved scales with 4 load cells or for weighing conveyors, tanks and hoppers.
CAPACITIES (kg): 500, 1000, 2000.
OIML R60 approved, NTEP, ATEX 3GD.
Nickel-plated steel. IP67 protection.
5. Double Shear Beam for Weighbridges

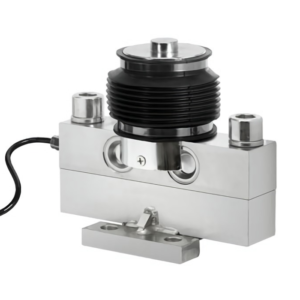

RSBT DOUBLE SHEAR BEAM LOAD CELL
Double shear beam load cells particularly suitable for weighing weighbridges, dosage systems, tanks, silos, etc., complete with support and oscillating spherical joint. CE-M approved.
CAPACITIES (kg): 25000, 30000, 40000.
OIML R60. C3 precision class.
Nickel-plated steel. IP68 protection.
6. Compression

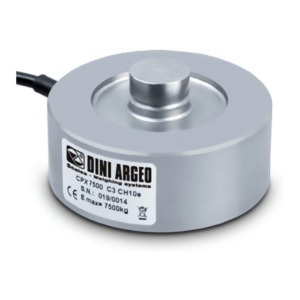

CPX SERIES COMPRESSION LOAD CELL
Stainless steel compression load cells suitable for weighing tanks and hoppers with the relevant accessories.
CAPACITIES (kg): 250, 500, 1000, 2500, 5000, 7500, 10000, 12500, 15000, 30000, 50000, 100000.
OIML R60, C3 precision class from 2500 to 12500kg.
Stainless steel. IP68/IP69K protection.
7. Tension

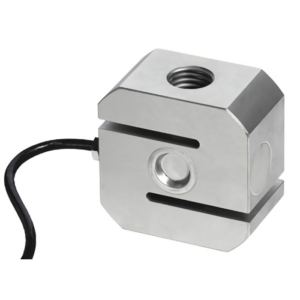

STU-1K TENSION LOAD CELL
Tension/Compression load cells, suitable for weighing in tension suspended loads and as overload checking and limitation, or for compression use in the creation of weighing systems with various load cells.
CAPACITIES (kg): 2000, 5000, 8000, 10000.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.
8. Column for Weighbridges

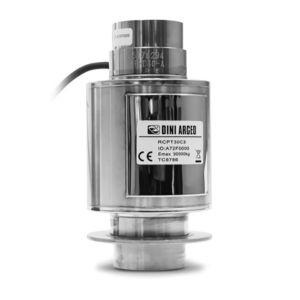

RCPT SERIES ANALOGUE COLUMN LOAD CELL
Column load cell for CE-M approved weighbridges, tanks, silos, etc.
CAPACITIES (kg): 20000, 30000, 50000.
OIML R60. C3 precision class.
Special alloy steel body with STAINLESS steel external casing; manufactured with laser solderings. IP68 protection.

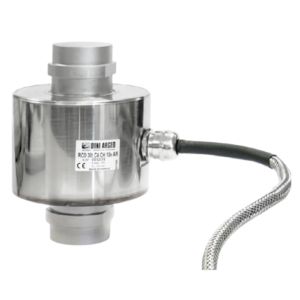

RCA SERIES ANALOGUE COLUMN LOAD CELL
Analogue version of compression load cells, ideal for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP68 protection, 4000 divisions, fitted with “rodent proof” armoured cable.
CAPACITIES (kg): 30000.
OIML R60. C4 precision class. IP68 protection.
RCD SERIES DIGITAL COLUMN LOAD CELL
Digital version of compression load cells, ideal for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, with IP68 protection, 4000 divisions, fitted with “rodent proof” armoured cable.
CAPACITIES (kg): 30000/40000/50000.
OIML R60. C4 precision class. IP68 protection.
B. Assembly Kit
1. Assembly Kit for Load Cells

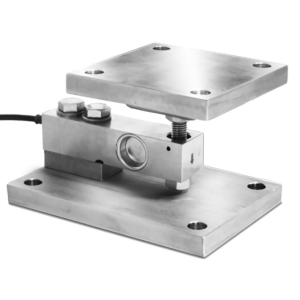

KSB SERIES SS KIT, FOR SBX/SBK LOAD CELLS
Mounting kit for SBX/SBK series shear beam cells from 3.000 to 5.000kg, suitable for weighing hoppers, tanks, platforms etc. ADVANTAGES:
– AISI 304 stainless steel construction
– Simple and quick assembly
– Articulated upper plate for correct weighing in the presence of expansions/flexions
– Height adjustment for optimal levelling of the structure to be weighed

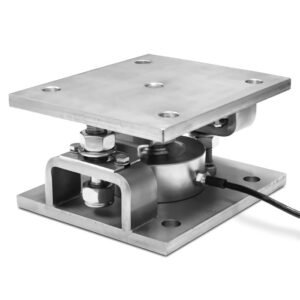

KCPN SERIES KIT, FOR CPX AND CPA COMPRESSION LOAD CELLS
Mounting kits for compression load cells CPX series up to 100,000kg and CPA up to 10,000kg, suitable for weighing silos, tanks, hoppers of big size. ADVANTAGES:
– Body in STAINLESS steel AISI 304.
– Centering plate.
– Protection against electrostatic discharges.
– Anti-overturn system.
– Locking/bypass system for facilitated transport and maintenance.
2. Kit for Assembling Weighbridges

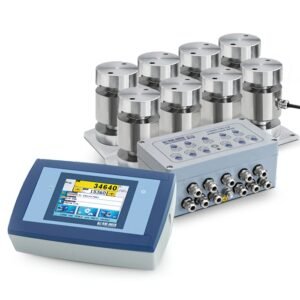

WKA-C4 ANALOGUE KIT FOR WEIGHBRIDGES
Weighbridges kit made up of 3590ET touch screen weight indicator with AF03 software for weighbridges, 6 or 8 stainless steel IP68 “RCA” analogue load cells, complete with galvanized steel oscillating resting joints and junction box with surge arresters.
CAPACITY: 180t, 240t.
OIML R60. C4 precision class.
WKD-C4 DIGITAL KIT FOR WEIGHBRIDGES
Weighbridges kit made up of 3590ETD touch screen weight indicator with AF03 software for weighbridges, 6 or 8 stainless steel IP68 “RCD” digital load cells, complete with galvanized steel oscillating resting joints and junction box with surge arresters.
CAPACITY: 180t, 240t.
OIML R60. C4 precision class.
3. Kit for Assembling 4 Cells Scale

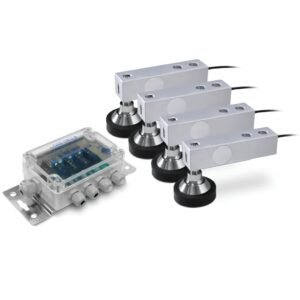

PLT SERIES, KIT FOR ASSEMBLING FLOOR SCALES
Ideal for creating platforms with 4 load cells of various sizes and capacities. The kit is made up of 4 350 Ohm.
IP68 nikel-plated load cells.
OIML and NTEP approved, together with adjustable resting feet and an equalisation box.

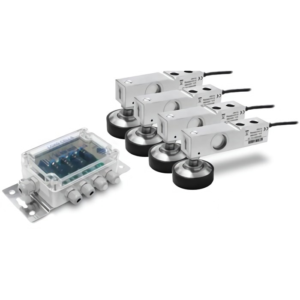

PLX1K-1 SERIES, KIT FOR ASSEMBLING FLOOR SCALES
Ideal for creating platforms with 4 load cells of various sizes and capacities. The kit is made up of 4 1000 Ohm.
IP68 stainless steel load cells.
OIML approved, together with adjustable stainless steel resting feet and an equalisation box.
C. Junction Box & Accessories
1. Junction Box

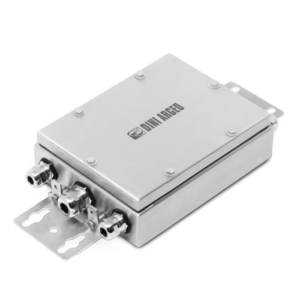

JB4QIP69K EQUALISED JUNCTION BOX
AISI 304 stainless steel junction box with IP68/IP69K protection from water and dust, fitted with electronic board for junction and equalisation of 4 load cells. Equalisation board with signal adjustment trimmer, for an accurate and reliable equalisation. The reversible fixing bracket allows the junction box to be hung on the wall, thus saving space.

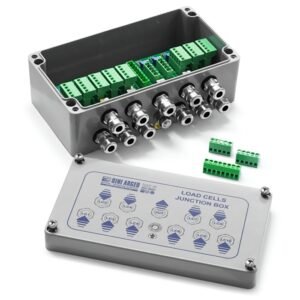

JB10Q SERIES EQUALISED JUNCTION BOX
Junction box fitted with electronic board for junction and equalisation of up to 10 load cells. Particularly suitable for weight bridges, thanks to the Surger Arresters against electric discharges and disturbances. Case suitable for harsh environments, with metallic cable glands and grounding. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.
2. Accessories & Cables

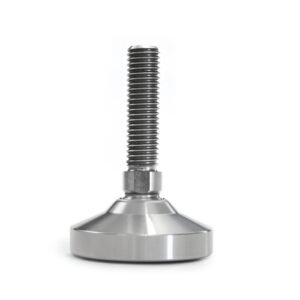

SBFI STAINLESS STEEL FEET
Stainless steel articulated feet designed in order to obtain the best weighing performances, particularly suitable for creating scales with 4 load cells. Extremely compact and easy to install, the feet minimize the height of the platform and ensure a perfect decoupling of the lateral forces during the weighing operation.
D. Platform & Modules
1. Platform

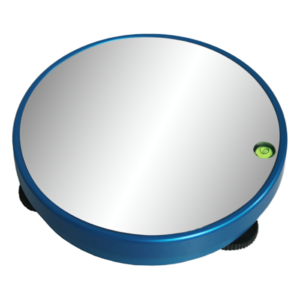

RPLC SERIES SINGLE CELL ROUND PLATFORM
Small capacity electronic round platforms made in anodized blue aluminium. Precise and sturdy structure, suitable for scales and automatic weight checking systems in all industrial and commercial applications.
Standard version is with approved load cell.

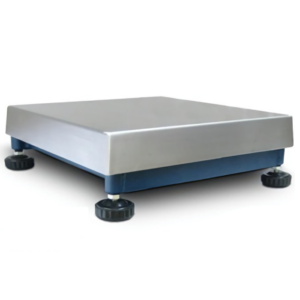

PB SERIES SINGLE CELL PLATFORM
Small and medium capacity electronic platforms with a stainless steel surface having a precise and sturdy structure.
Up to 15000d resolution.
OIML R60 C3.
IP65 protection.

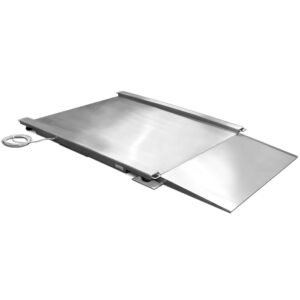

LPI SERIES LOW PROFILE STAINLESS STEEL PLATFORM
Low profile platforms suitable for weighing trolleys, pallet trucks, etc.; fitted with sideboards and an on/off ramp.
Suitable for creating scales and electronic weighing systems for all types of industrial and commercial applications.
Standard version is with approved load cell. Available also in the Ex II 2GD IIC ATEX version in stainless steel.
2. Modules

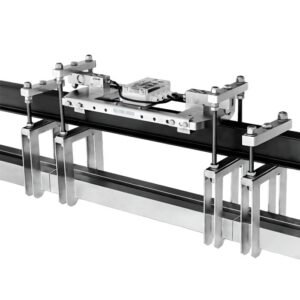

TWG SERIES OVERHEAD RAIL SCALES
Weighing modules for overhead monorails, easily adaptable to any handling systems, even existing ones. Fitted with OIML approved load cells as standard.
It operates with 2 STAINLESS STEEL load cells with IP68 protection rating, approved according to OIML R60 C3.
Maximum length of the overhead rail weighing section: 600 mm.
E. Mobile Weighing
1. Crane Scales
MCWN NINJA SERIES SUSPENDED CRANE SCALE
Easy to use and reliable professional digital crane scales, for weighing in industrial environments, fitted with protective transport case. The single security system makes them suitable for lifting and weighing the load. Thanks to their compact size, these crane scales just slightly reduce the lifting distance of the crane. Available also CE-M APPROVED. Fitted with test certificate obtained with standard weights.

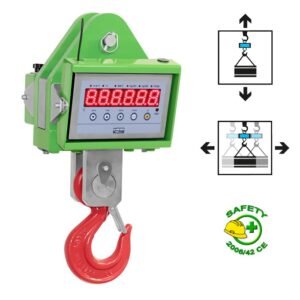

MCWHU “HULK” SERIES DOUBLE SECURITY CRANE SCALE
High capacity crane scales for industrial weighing, reliable and easy to use, suitable both for commercial warehouses and for more harsh environments. Allow lifting, weighing and moving the suspended load and they can be installed permanently on the lifting system. The models with a capacity up to 15000 kg are supplied with a test certificate. They are available both for internal factory use and CE-M APPROVED.
2. Hand Pallet Truck Scales

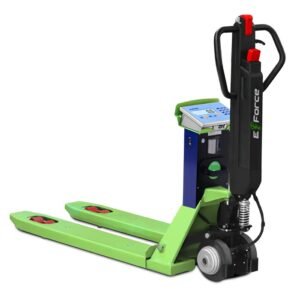

TPW E-FORCE ELECTRIC PALLET TRUCK SCALE
Innovative pallet truck scale with electric traction tiller.
TPW “E-FORCE” combines the benefits of electric pallet trucks with the precision of a Dini Argeo hand pallet truck scale.
Thanks to the electric traction tiller, weighing and handling has never been so easy!

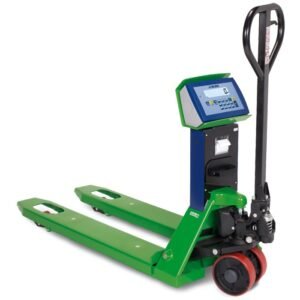

TPWA ACTIVITY SERIES PALLET TRUCK SCALE

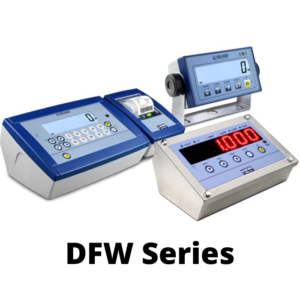

Pallet truck scale supplied with new DFW series integrated weighing indicator. The new program allows the user to easily access the main software functions and weighing operations.
TPWA’s flexibility makes them indispensable in harsh working enviroments for who requires accurate pallet truck weighing. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses. Available also CE-M APPROVED.
3. Pallet Weighing
EPWL LOGISTIC PALLET WEIGHING FLOOR SCALE
Integrated extractable weight indicator complete of stretchable connection cable which may be easily positioned according to one’s weighing requirements. Functions with a built-in battery with extractable drawer for easy substitution. The automatic multirange capacity allows the maximum accuracy on the lower weight values, mantaining the same load capacity. Available also in dual range APPROVED version, for legal for trade use.
4. Lift Truck Weighing

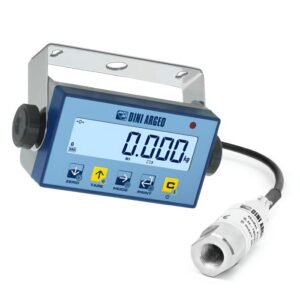

LTP HYDRAULIC WEIGHING KIT FOR FORKLIFTS
Easy to install, it is connected to the hydraulic system with a simple tee connector.
Ideal for simple weight checks, control of goods in and out of the warehouse, prevention of overloading of the forklift and racking.
Stainless steel execution. IP65 protection rate.

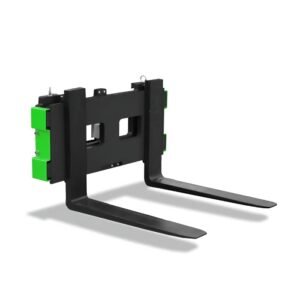

LTW SERIES WEIGHING SYSTEM ON FORKHOLDER PLATE
Weighing module for fork lift trucks with fixing guide according to DIN15173 – FEM class II standards, for transforming a normal lift truck into a mobile electronic scale. Available also CE-M APPROVED.
Bearing structure in extra thick sheet steel and accurate functioning mechanics with 2 shear-beam IP68 load cells.
5. Mobile Weighing App

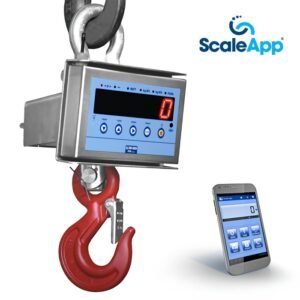

SCALEAPP, MANAGING THE SCALE
ScaleApp allows you to connect with the weighing system, via Bluetooth or WiFi, giving a real-time reading of the weight and performing all of the functions required to use the system (zero, tare, management, saving and sharing weighs).
Minimum Android version supported: “Jelly Bean”.
WIFI or Bluetooth connection for communication with the scale.
F. Weighbridges & Axle Weighing
1. Mobile Weighbridges

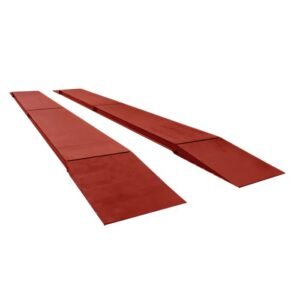

“DTW” DUAL TRACK VEHICLE WEIGHING SERIES
Innovative vehicle weighing dual track weighbridge, easily transportable and installable thanks to the reduced height and weight. Designed and built with vey high quality materials, this represents the most efficient solution for saving time, space, and money in comparison to the classic weighbridges currently available on the market. The standard version is fitted with CE-M 3000e APPROVAL, for legal for trade use.
2. Dynamic Axle Weighing
FLUSH-FLOOR PLATFORM FOR AXLE WEIGHING STATIONS
Reinforced platform which allows to calculate the weight of a vehicle in transit, adding up the various axles, weighed when stationary or in motion. Designed for flush floor installation.
CE approved according to Directive 2014/31/EU for verification of the axle weight.
OIML R134 certified for in-motion weighing (dynamic) of the whole vehicle.
3. Self Service Stations

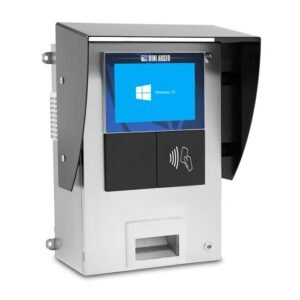

6116BOX SELF-SERVICE SYSTEM
STAINLESS steel kiosk with 10.1” touchscreen PC, perfect for self-service weighbridge management. Equipped with thermal printer and RFID reader.
Satin STAINLESS steel electrical panel board, equipped with electromechanics and power supply unit for integrated devices.

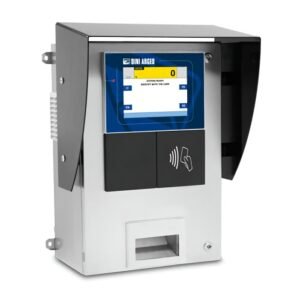

3590EGTBOX8 SELF-SERVICE SYSTEM
STAINLESS steel kiosk with 8″ touchscreen weight indicator, perfect for self-service weighbridges management. Fitted with thermal printer and RFID reader or coin acceptor. Open to CE-M type-approval.
EU Type Examination Certificate (45501:2015).
OIML R76. OIML R134 (AF09).
4. Indicators

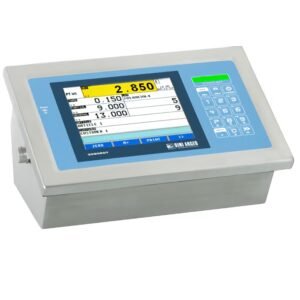

3590EGT GRAPHIC TOUCH WEIGHT INDICATOR
Digital weight indicator with a big touch screen display, suitable for advanced industrial applications. Allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).
5. Software for Weighbridges

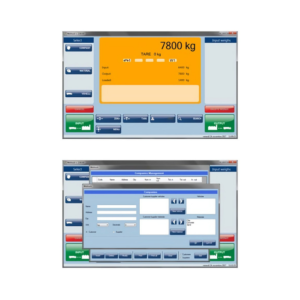

WEITRUCK PC SOFTWARE FOR MANAGING WEIGHBRIDGES
Software for a PC which allows to completely manage a weighbridge system, combinable to the DFW, DGT and 3590 series’ weight indicators. Besides the complete management of the connected scale, the programme offers a simple and intuitive operator interface, databases for the storage of the customer, material, and vehicle data, management of the totals and programmable printouts.
6. Applications
SCALE NETWORK
Scale Network is a network of 3590E AF03 indicators for weighbridges, connected to each other through the special SETHNET ethernet interface. Thanks to the SCALE NETWORK system, on any of the connected indicators it is possible to execute a weighing operation or a modification of the database, with a real-time updating of all the connected indicators.
G. Scalehouse Line
1. Compact Scale

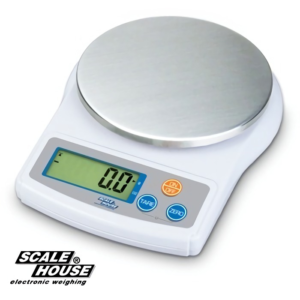

MB SERIES COMPACT SCALE
All-purpose scale for office and/or laboratory. Featured by a reduced size and large load capacity, it offers high weighing accuracy thanks to the 10.000 reading divisions.
Waterproof simplified mechanical keypad with 3 keys.
Stainless steel plate, Ø 120mm size. Packaging: 220x170x52mm size – approximate weight of 440g.

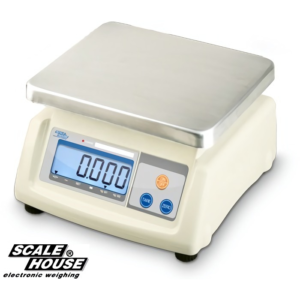

ATM SERIES COMPACT SCALE
Simple and compact scale, as well as easy to clean. Ideal for environments with high hygiene requirements, kitchens and small work spaces. Available also CE-M APPROVED for legal for trade use.
Protection against water spray coming from the top.
Stainless steel plate, 190x230mm size.

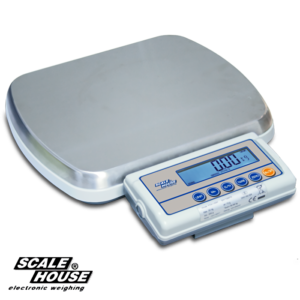

APN SERIES COMPACT BENCH SCALE
Bench scale with weight indicator attached to the platform.
Available also CE-M APPROVED for legal for trade use.
Backlit LCD display with 6 digits 22mm high.
Membrane waterproof keypad with 6 keys.
Stainless steel plate, 280x325mm size.
2. Multifunction Scale

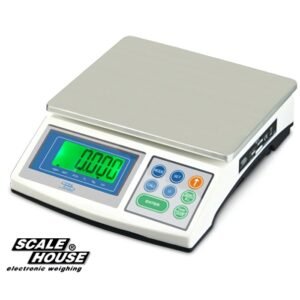

NWS SERIES MULTIFUNCTION/COUNTING SCALE
Compact and portable multifunction scale, with counting function and weight check function. Mechanical waterproof keypad with 8 keys and acoustic feedback.
Stainless steel plate, 218x267mm size.
Built-in rechargeable battery 4Vdc (about 100h battery life) and 230Vac power adapter.
ASW SERIES MULTIFUNCTION/COUNTING SCALE
Professional, multifunction, compact scale with the counting, % weight, weight and pieces quantity check and weight totalisation functions.
Membrane waterproof keypad with 7 digits and acoustic feedback.
Stainless steel plate, 230x300mm size.
3. Counting Scale
NCS SERIES COUNTING COMPACT SCALE
Compact and portable counting scale, ideal for rentals and inventories, with pieces’ totalisation function.
Mechanical waterproof numerical and functional keypad with 16 keys and acoustic feedback.
Stainless steel plate, 218x267mm size.
BCSD SERIES DUAL LOADING COUNTING SCALE
Counting scale, CONNECTABLE TO A SECOND REMOTE PLATFORM, particularly suitable for taking inventories and for counting small parts. Weight or piece quantity check, weight and pieces’ totalisation function, 100 PLU memory.
Membrane waterproof, alphanumeric and functional keypad with 20 keys and acoustic feedback.
Stainless steel plate, 230x300mm size.
4. Bench / Floor Scale
WEIGHING SCALE APM SERIES
These new bench weighing scales are fitted with a weight indicator which can be mounted attached to the platform or fixable to the wall, thanks to the stretchable cable. The big 50mm LCD display allows to easily read the weight in any condition. Easy Carrying Built-in Handgrip Design.
Available also CE-M APPROVED for legal for trade use.
APN SERIES COMPACT BENCH SCALE
Bench scale with weight indicator attached to the platform.
Available also CE-M APPROVED for legal for trade use.
Membrane waterproof keypad with 6 keys.
Stainless steel plate, 280x325mm size.
Sturdy structure, in ABS. Equipped with carrying handle.
AFWC & AFWD SERIES BENCH / FLOOR SCALE
Versatile bench or floor scale with attached column, for control and production. Pieces counting, weight control, and totalisation function. Available also CE-M APPROVED for legal for trade use.
Membrane waterproof keypad with 7 keys anc acoustic feedback. ABS case and indicator support column.
Stainless steel plate, size:
C model 350x450mm; D model 420x520mm.
5. Price-Computing / Retail Scale
AWM SERIES MULTIFUNCTIONAL/COUNTING RETAIL SCALE
Portable multifunction scale, with dual display for commercial use. Counting, % weight, weight or pieces, or % quantity check, and totalisation functions.
Membrane waterproof keypad with 7 digits and acoustic feedback.
Stainless steel 230x300mm plate.
ASG SERIES PRICE COMPUTING “RETAIL” SCALE
Dual interval price computing scales, for commercial use. Connectable to the printer, for amount totalisation function. 105 PLU memory (5 from direct keys).
Membrane waterproof numeric and functional keypad with 25 keys and acoustic feedback.
Stainless steel plate, 240x370mm size.
6. Weight Indicators
AFW SERIES MULTIFUNCTION WEIGHT INDICATOR
Very simple to use multifunction weight indicator in ABS. Connectable to load cell platforms; pieces counting, % weight, weight check, totalisation/formulation functions. Internal resolution of 600.000 points. CE-M approval for legal for trade use.
Membrane waterproof keypad with 7 keys and acoustic feedback. Connection with up to 4 load cells (350 Ohm input resistance).
ILWI SERIES MULTIFUNCTION WEIGHT INDICATOR
Multifunction weight indicator with stainless steel case and easily readable digits, connectable to load cell platforms. Usable in various weighing applications: weight checking with 2 thresholds, counting, and totalisation.
IP65 stainless steel case fitted with support bracket with adjustable inclination, for column mounting.
Dimensions: 325x195x230mm
7. Crane Scales
CHS SERIES CRANE SCALE
Portable, practical crane scale for weighing anywhere. Sturdy and reliable.
Mechanical membrane functional waterproof keypad with 3 keys: on / off, hold / unit, zero / tare.
Packaging: dimensions: 240 x 130 x 80 mm – weight: 625 g.
Upon request: ACCREDIA calibration with issuing of relative certificate.
DHS SERIES CRANE SCALE
Portable and accurate crane scale for weighing anywhere. Has a continuous 250-hour operating time, auto-switch off function in case it’s not used for a long time.
Mechanical waterproof simplified keypad with 3 keys.
Aluminium case, 140x80x47mm size, 420g weight, colour: see table.
8. Scalehouse Accessories & Stainless Steel Plate
STAINLESS STEEL PLATE
Stainless steel plate with discharge outlet.
H. Weighing Pads
1. Axle Weighing Scales
PORTABLE KIT FOR VEHICLE AXLE WEIGHING
It weighs the vehicle axles and calculates the total weight. Consisting of two WWS series portable pads and the touch screen weighing terminal with integrated printer. Wired version.
CE approved according to Directive 2014/31/EU for verification of the axle weight.
2. Portable Vehicle Scales
WEIGHING KITS FOR 2-AXLE VEHICLE AND VANS
Weighs the whole vehicle and calculates the weight of the axles. Composed of 4 WWS series portable pads and the weighing terminal with integrated printer. Cable version.
CE approved according to Directive 2014/31/EU (NAWI).
Complete weighing of a vehicle. Weighing with insertion of the preset tare. Printing of the weighs.
WIRELESS PORTABLE KIT FOR VEHICLE AXLE WEIGHING
Weighs the vehicle axles and calculates the total weight. Consisting of two WWS series portable pads and the touch screen weighing terminal with integrated printer. Wireless version.
CE approved according to Directive 2014/31/EU for verification of the axle weight.
WEIGHING KIT FOR 2-AXLE VEHICLES AND VANS. TOUCH SCREEN.
Weighs the whole vehicle and calculates the weight of the axles. Consisting of 4 WWS series portable platforms and the touch screen weighing terminal with integrated printer. Cable version.
CE approved according to Directive 2014/31/EU (NAWI).
WEIGHING KIT FOR 2-AXLE VEHICLES AND VANS. WIRELESS.
Weighs the whole vehicle and calculates the weight of the axles. Consisting of 4 WWS series portable pads and the weighing terminal with integrated printer. Wireless version.
CE approved according to Directive 2014/31/EU (NAWI).
WIRELESS VERSION WITH TOUCH SCREEN WEIGHING KIT (2-8 AXLES)
Weighs the entire vehicle and calculates the weight of the axles. Up to 16 WWS series portable platforms and touch screen weighing terminal with integrated printer. Wireless version.
CE approved according to Directive 2014/31/EU (NAWI).
3. Platforms & Indicators
3.1 PADS
WWSB WHEEL WEIGHING PADS
Pads designed to create weighing stations for small sized vehicles (cars, carts, vans, etc.); particularly accurate and sturdy, with attention to details.
4 pads system
Single CE-M Pad: Max=1500kg and e=0,5kg
CE-M SUM: Max=6000kg and e=2kg
3.2 WIRELESS PADS
WWSCRF WHEEL AND AXLE WEIGHING PADS
Wireless pads designed for creating wheel and axle vehicle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator. Pads designed for creating weighing stations for large vehicles (vans, trucks, tankers, tractor-trailers, etc.); particularly accurate and sturdy, with attention to details.
3.3 INDICATORS IN SUITCASE
DFWKRP INDICATOR FOR VEHICLE WEIGHING
Multifunction digital weight indicator in Rack version complete with 4 connectors for linking the platforms, built-in rechargeable battery, battery charger, thermal printer, time/date and case. It is particularly suitable for vehicle weighing applications.
CE-M approvable (OIML R-76 / EN 45501).
3.4 ACCESSORIES
EASY LEVEL ALUMINIUM LEVELING MODULES FOR MOBILE AXLE WEIGHING
Transportable levelling modules, in aluminium, ideal for creating mobile or fixed axle weighing stations.
Improve the accuracy of the weight reading, thanks to the optimal distribution of the load on the axles during weighing.
Specific for WWSE and WWSD series platforms.
I. Touchscreen Indicators
1. Touch Screen 8″
3590ET8 TOUCH SCREEN WEIGHT INDICATOR
Digital weight indicator with a big 8″ touch screen display, suitable for advanced industrial applications. It allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. Fitted with 3 serial ports, Ethenet port, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).
2. Touch Screen 5,7″
3590ET TOUCH SCREEN WEIGHT INDICATOR
Digital weight indicator with a big touch screen display, suitable for advanced industrial applications. It allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. Fitted with 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).
3. For Weighbridges Digital Load Cell
3590ETD TOUCH SCREEN WEIGHT INDICATOR
Weight indicator which is suitable to manage digital load cells for weighbridges. It allows the visualization of all the data related to the weighing and the personalization of the screens, greatly simplifying the operations of the user. Equipped with 3 serial ports, Ethernet port, transmission protocols for data communication, fully configurable printouts, integrated alibi memory and input for barcode/badge reader. CE-M approved (OIML R-76 / EN 45501).
J. Industrial Weight Transmitters
DGT4X – HIGH SPEED WEIGHT TRANSMITTER
Weight transmitter for weight transfer to PLC via fieldbus, analog output or RS485. It allows the reading and diagnostics of each load cell or each connected scale.
Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), NMI S788
Integrated WebServer as standard for configuration, diagnostics and data backup.
K. Repeaters
DFW AND DGT SERIES REPEATERS
The DFW and DGT series’ indicators can be use as a weight repeaters in combination with the MSTSLV optional program, designed for using the instrument both as a UNIVERSAL weight repeater and as a MULTI-SCALE repeater (MASTER). Click here for details
ALPHANUMERIC REPEATER “GLR100”
Alphanumeric graphic repeater with RGB HIGH LUMINOSITY LED matrix, ideal for displaying weight and operational messages. Depending on the connected indicator, it is possible to display weight with large digits or customisable operational messages. RGB technology allows you to change the colour displayed, with a traffic light function (red, yellow, green).
CE-M approved (OIML R-76 / EN 45501).
DGT100 UNIVERSAL REPEATER
Weight indicator/ repeater with large matrix display composed of very intense bright LEDs. Particularly suitable for outdoor uses, it is clearly visible even in full sunlight and where it’s necessary to view from a distance at any angle. Case completely in IP68 stainless steel.
Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), NMI S788
DGT603GD MAXI GOLIAH REPEATER FOR HAZARDOUS AREA
Weight indicator/ repeater particularly suitable for use in hazardous environments, where it’s necessary to view the weight from a distance at any angle.
Usable in areas:
ATEX II 3G Ex nR IIC T6 Gc X for gases
ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust.
Fitted with a very bright 60mm LED matrix display and IP68 stainless steel case. CE-M approvable (OIML R-76 / EN 45501).
L. Printers
PR80 SERIES COUNTER-TOP THERMAL PRINTER
Thermal printer fitted with automatic cutter, features are a compact size and elegant design. Particularly suitable in the industrial sector for the simple replacement of the paper roll, printing speed and robust construction.
Printer size: 175x138mm, h= 120mm, weight: about 1320g
Maximum paper width: 80 mm
Roll size: diameter of 83 mm
